Description

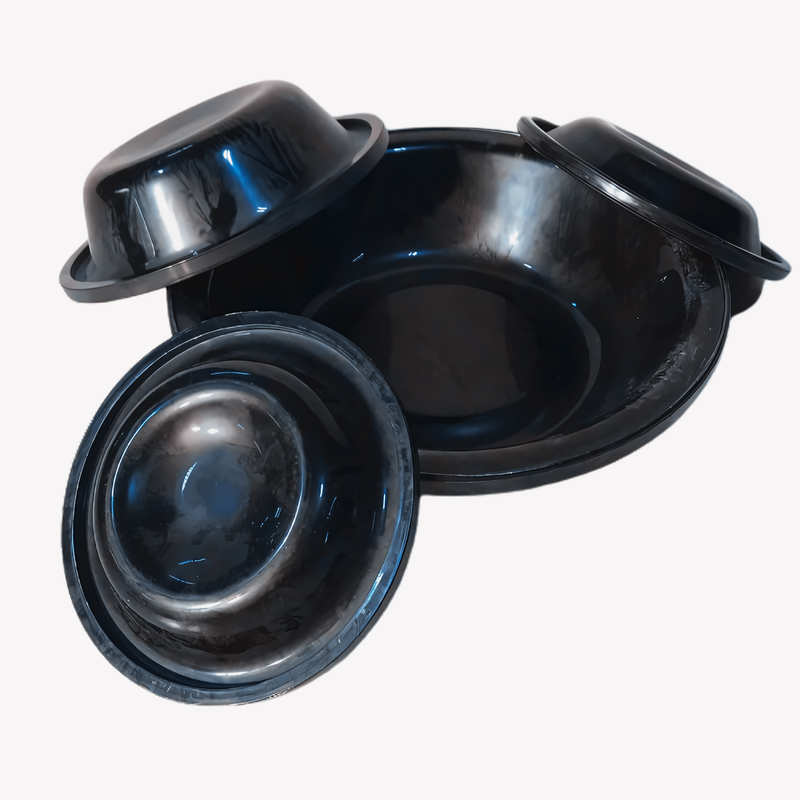

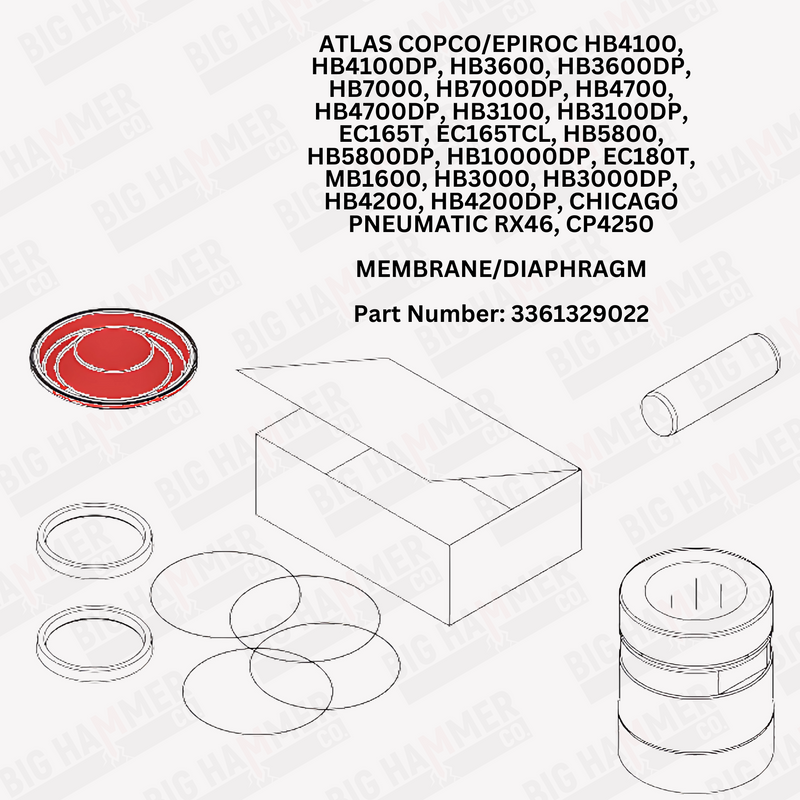

Our diaphragms directly fit the Atlas Copco/Epiroc HB4100, HB4100DP, HB3600, HB3600DP, HB7000, HB7000DP, HB4700, HB4700DP, HB3100, HB3100DP, EC165T, EC165TCL, HB5800, HB5800DP, HB10000DP, EC180T, MB1600, HB3000, HB3000DP, HB4200, HB4200DP, Chicago Pneumatic RX46, CP4250. The OEM part number is:
| Model | Serial Number | Part Number |
| HB4100 HB4100DP HB3600 HB3600DP HB7000 HB7000DP HB4700 HB4700DP |
DEQ220482 DEQ171455 DEQ180774 |
3361329022 |
| HB3100 HB3100DP |
DEQ170057 DEQ180614 |
3361329022 |
| EC165T | DEQ180185 DEQ161220 - DEQ170465 |
3361329022 |
| EC165TCL | DEQ170466 DEQ170466 - DEQ180184 |
3361329022 |
| HB5800 HB5800DP |
DEQ170334 170 - DEQ160947 DEQ170334 - DEQ181482 DEQ181483 - DEQ220481 |
3361329022 |
| HB10000DP | DEQ191769 DEQ191770 DEQ160469 - DEQ181403 |
3361329022 |
| EC180T | DEQ172048 | 3361329022 |
| MB1600 | 3361329022 | |
| HB3000 HB3000DP HB4200 HB4200DP |
3361329022 | |
| RX46 | DEQ160340 | 3361329022 |
| CP4250 | 3361329022 |
Our diaphragms are made to exact specifications to match OEM standards. A high-quality diagram is a must for any rebuilt hydraulic hammer. Your diagram should resist high and low temperatures and also perform at its best in all cases. An inferior Diaphragm can wear out prematurely. Depending on the make and model of your hammer.
Big Hammer Co. is a direct replacement manufacturer for all the brands we sell. Big Hammer Co is not endorsed or sponsored by, or in any way associated with Atlas Copco/Epiroc. This product is an direct replacement part.
Any use of or reference to the Atlas Copco/Epiroc trademark is for the sole purpose of indicating compatibility or product fit, and is not meant to imply any affiliation or relationship between Big Hammer Co. and Atlas Copco/Epiroc and/or the Atlas Copco/Epiroc Trademark.
